Integrating Vision-Language-Action Models and RGB-D Sensing for Robotic Waste Sorting on KUKA LBR iiwa

Robotic waste sorting with Vision-Language-Action models

Robotic waste sorting is a challenging task, requiring advanced perception and manipulation capabilities for diverse, unstructured waste items. Our research introduces a novel zero-shot robotic waste sorting system powered by Vision-Language-Action (VLA) models. VLAs are pre-trained on vast multimodal datasets (text, images, robot actions), enabling them to perform complex tasks without task-specific training or time-consuming data collection and labeling. Our system interacts with the VLA via an API call, providing an image and a natural language 'prompt.' The VLA then processes this input and returns a structured JSON response, detailing object information and action plans.

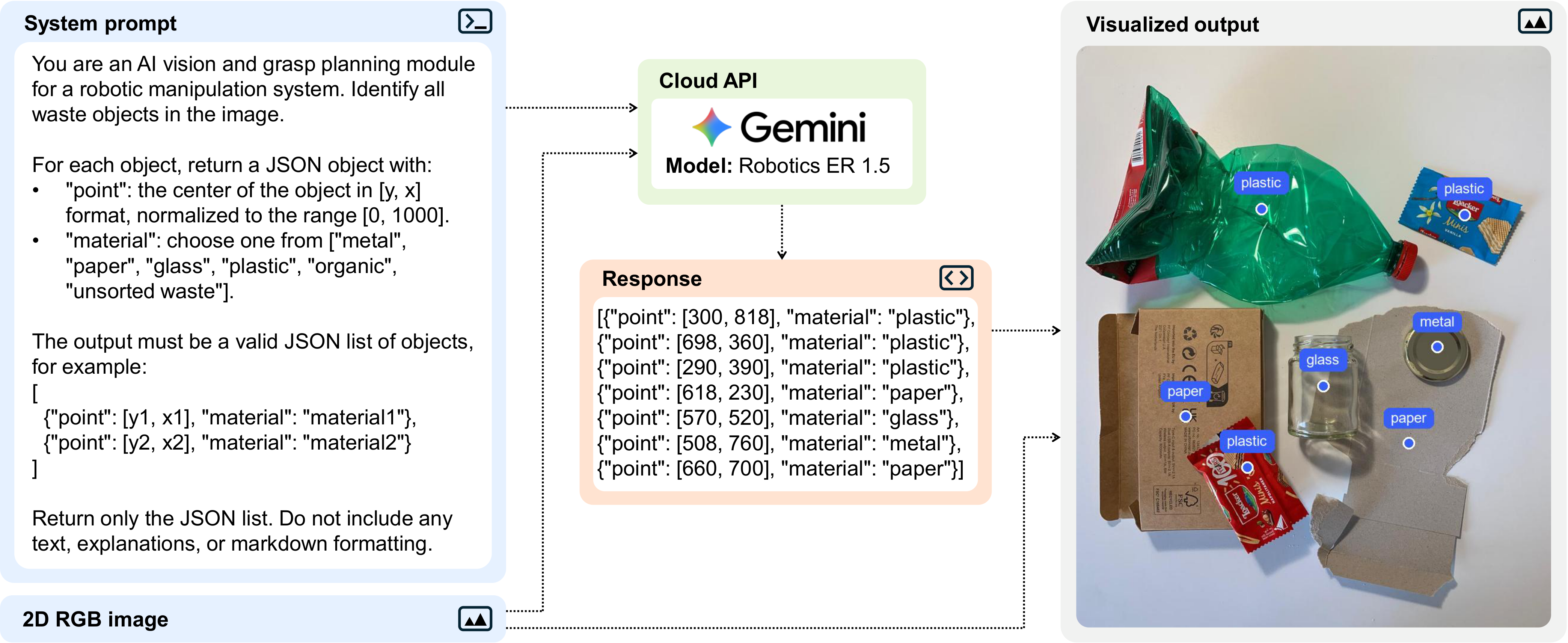

example_prompt — **Figure 1:** Overview of the information workflow between the system prompt, the RGB image, and the AI model

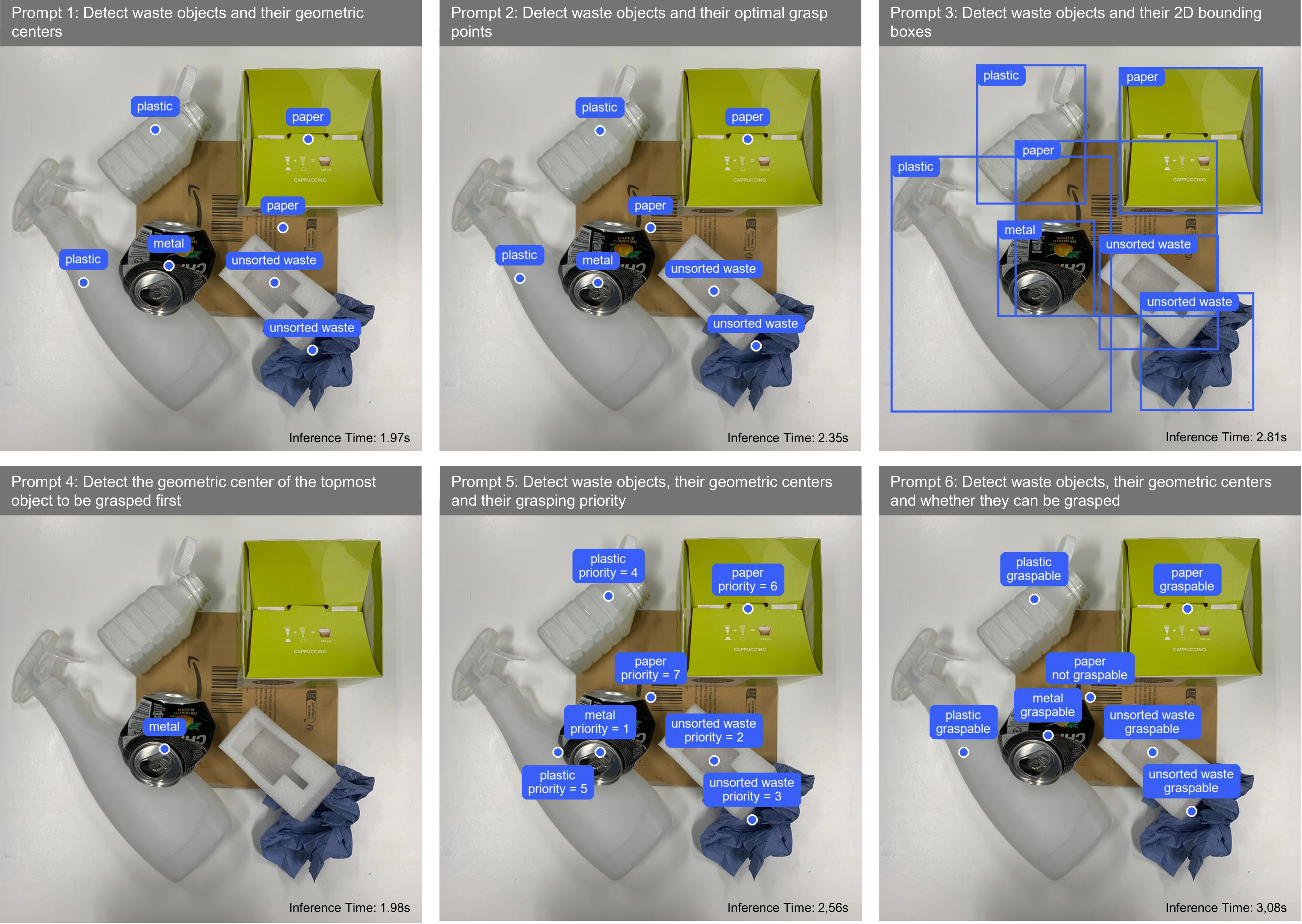

We designed six distinct prompt types to guide the VLA's intelligence for waste sorting:

Prompt 1 (basic classification): identifies waste objects and their geometric centers;
Prompt 2 (optimal grasping points): locates optimal grasping positions for irregular items;
Prompt 3 (2D bounding boxes): defines object boundaries;
Prompt 4 (topmost object): identifies the topmost object in cluttered scenes (the one that should be grasped first);
Prompt 5 (grasping priority): establishes a complete picking priority based on spatial arrangement.
Prompt 6 (graspable vs. ungraspable): distinguishes between graspable and ungraspable (occluded) items.

Robotic workcell and system integration

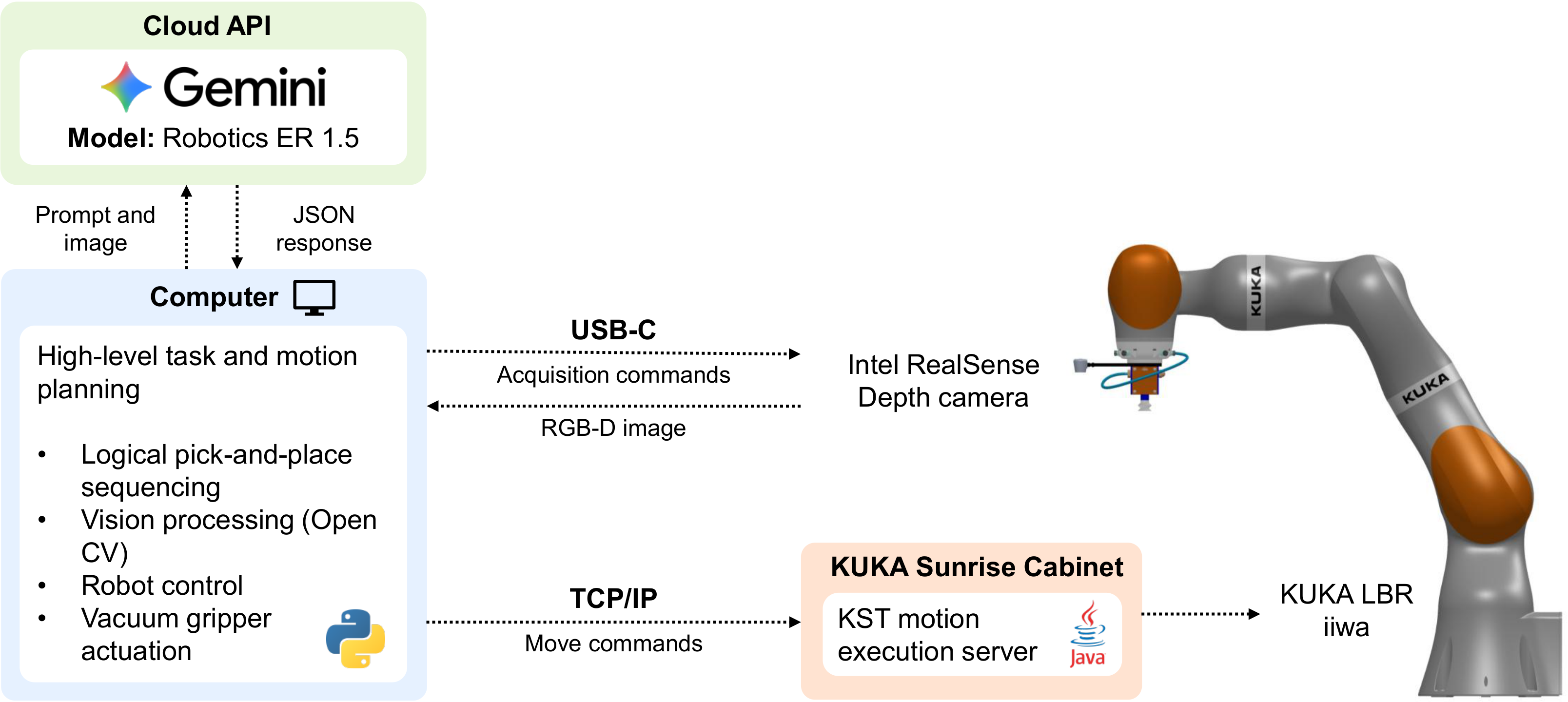

Our zero-shot waste sorting system is implemented on a 7 DOF KUKA LBR iiwa collaborative robot, equipped with a pneumatic vacuum gripper and Intel RealSense RGB-D camera. This sensor provides both color (RGB) and depth information, which enables the system to accurately perceive object heights, identify overlapping items, and make informed grasping decisions in cluttered scenes. The entire robotic workcell is controlled via an external computer using Python: this setup enables seamless communication between the VLA model (accessed through its cloud API), the RGB-D camera, and the KUKA robot's control system.

System performance

Our experiments demonstrate robust perception and efficient performance for zero-shot robotic waste sorting:

Inference time between 2 to 4 seconds, varying with prompt complexity and level of clutter, which is suitable for collaborative robotics applications;
High overall classification accuracy (89.64%), with usorted waste being the most difficult type of waste to correctly classify;
The incorporation of depth images significantly improves the VLA's spatial awareness, as it allows the system to accurately perceive object heights, resolve occlusions, and make informed grasping decisions in heavily cluttered environments while not significantly increasing the system's inference time.

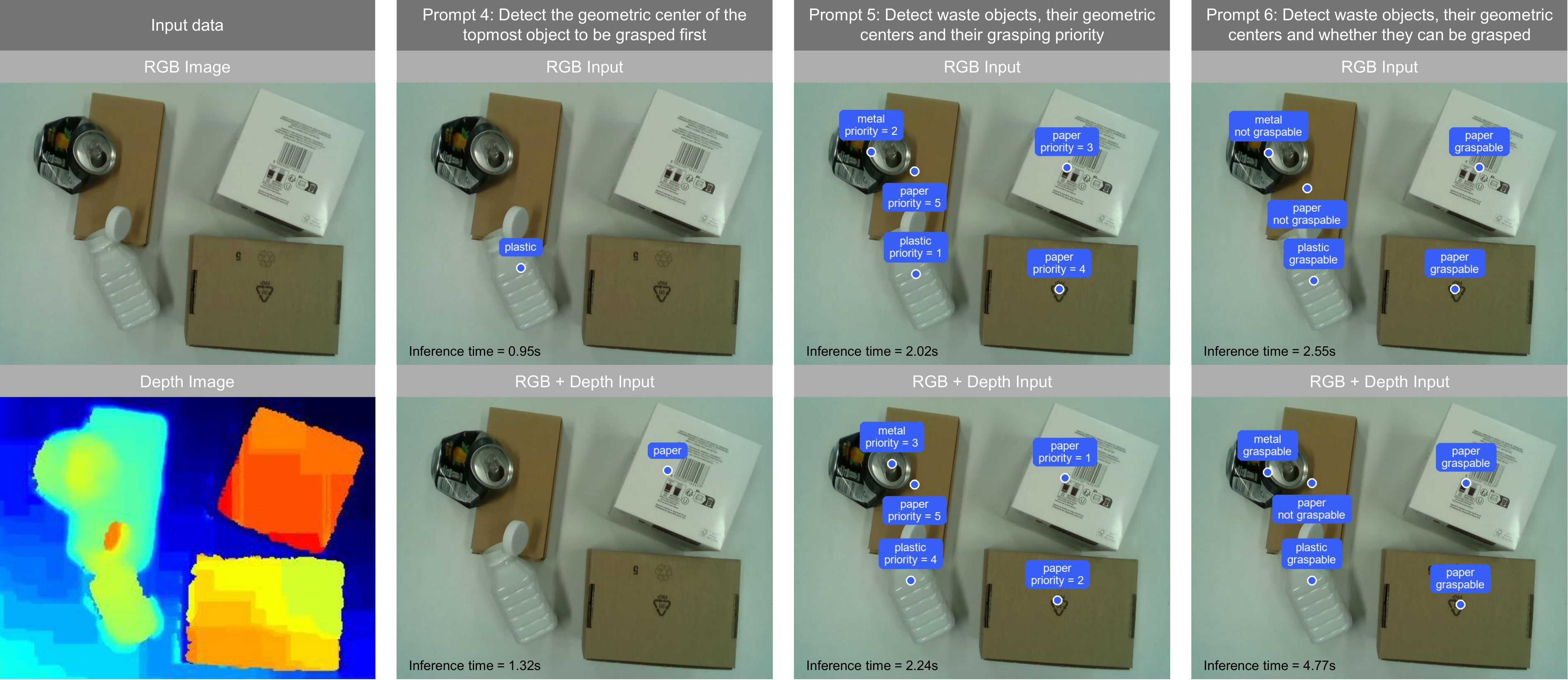

**Figure 4:** Comparison of the VLA model's output using standard 2D RGB input versus combined RGB-D input across prompts 4-6.

Real-world grasping strategies

We designed and validated multiple grasping strategies to handle different levels of clutter:

Strategy 1: Single API call for non-cluttered scenes (high efficiency);
Strategy 2: Iterative picking of topmost object (high safety, low efficiency);
Strategy 3: Single call with grasping priority (efficient but limited in stacked cases);
Strategy 4: Iterative graspable-object detection (best trade-off).

Demonstrations of these adaptive grasping strategies are available in the accompanying video content.

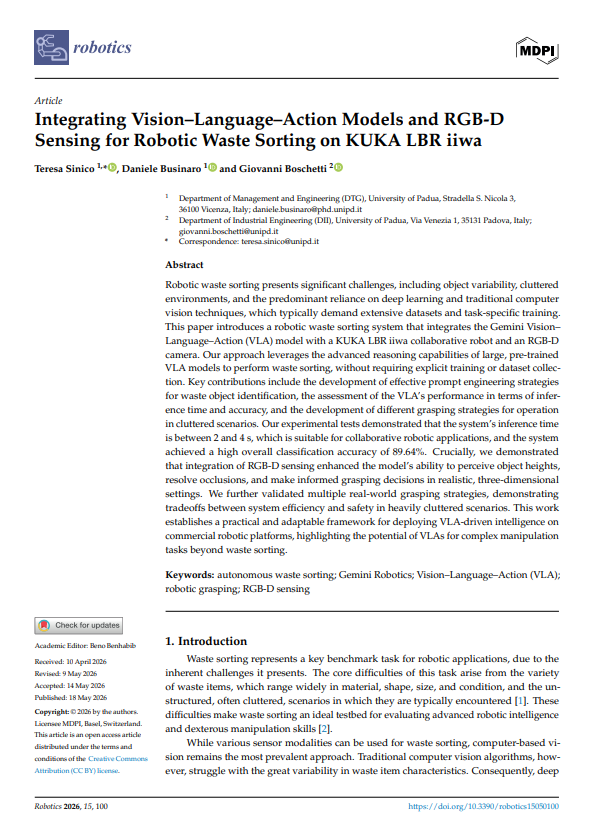

Paper

BibTex

@Article{Sinico2026,
AUTHOR = {Sinico, Teresa and Businaro, Daniele and Boschetti, Giovanni},
TITLE = {Integrating Vision–Language–Action Models and RGB-D Sensing for Robotic Waste Sorting on KUKA LBR iiwa},
JOURNAL = {Robotics},
VOLUME = {15},
YEAR = {2026},
NUMBER = {5},
ARTICLE-NUMBER = {100},
URL = {https://www.mdpi.com/2218-6581/15/5/100},
ISSN = {2218-6581},
DOI = {10.3390/robotics15050100}
}
